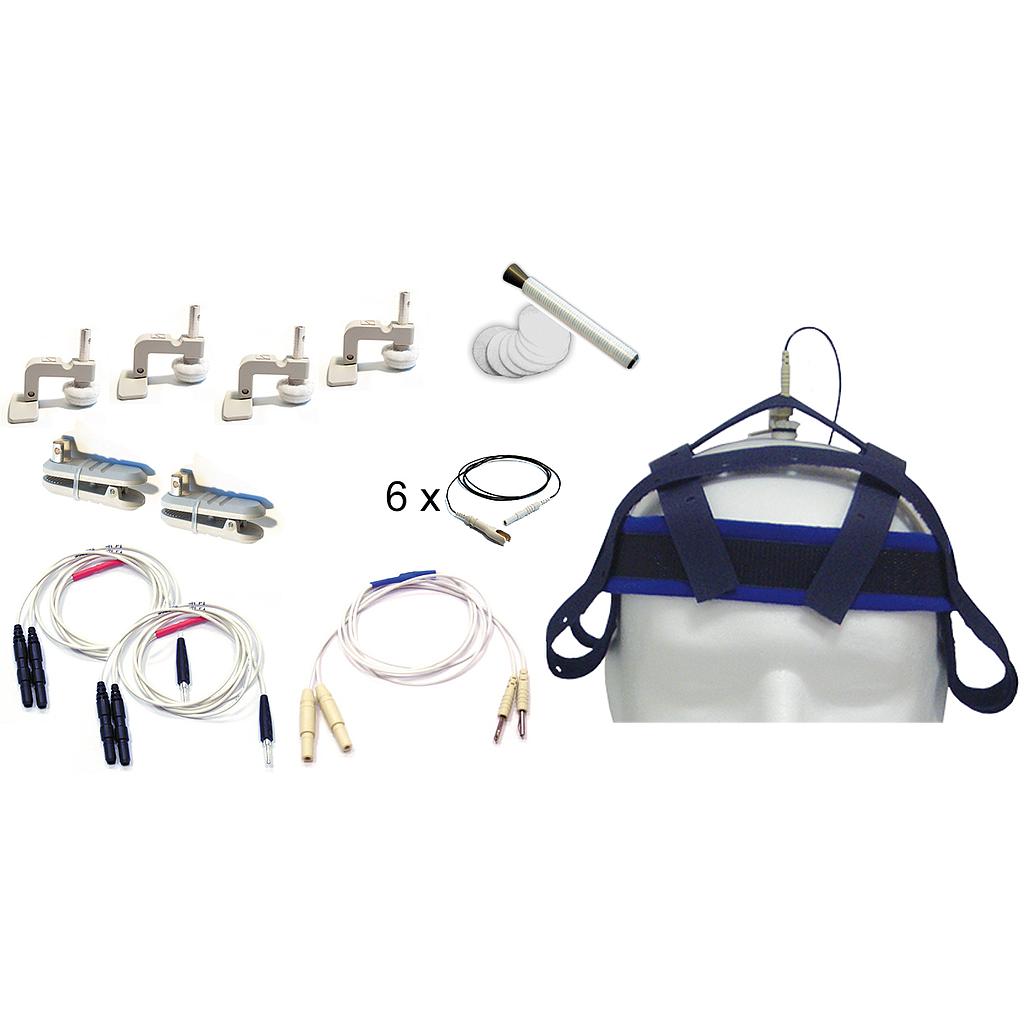

Derivation set for 1- and 2-channel EEG recordings with BioGraph Infiniti, suitable for all ProComp encoders. It includes: 2x PP-to-DIN connection cables, 2x ear electrodes, 4x sintered bridge electrodes, 6x EEG-DIN connection cables (50cm long), 2x Y-cables, 1x X-cable (for linked ear connections), 0-rings with guide rod for changing the disposable cotton pads, 1 package of electrode covers (consumables), 1x special Velcro cap for elegant electrode placement for any head size (WITHOUT SENSORS)

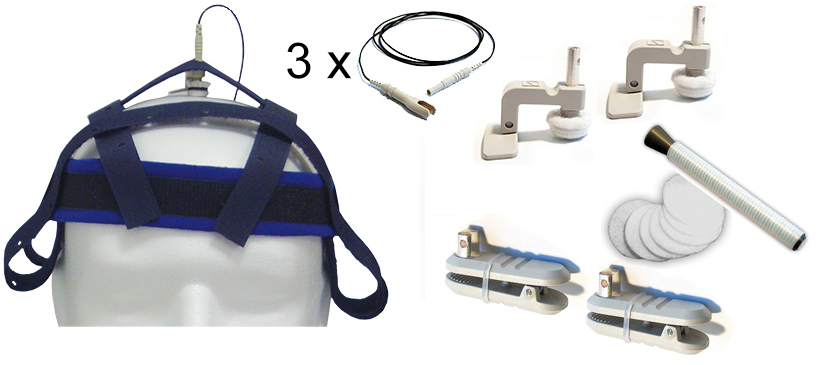

Derivation set for 1-channel derivations EEG with BioGraph Infiniti, suitable for all ProComp encoders It includes: 1x PP-to-DIN connection cable, 2x ear electrodes, 2x sintered bridge electrodes, 3x EEG-DIN connection cables (50cm long), 0-rings with guide rod for changing the disposable cotton pads, 1 package of electrode covers (consumables), 1x special Velcro cap for elegant electrode placement for any head size electrodes (WITHOUT SENSOR)

The TT-pIR HEadGear features two highly accurate passive infrared (pIR) sensors in a wide-range, dual configuration providing stable and reliable measurements. The lightweight, ergonomic design provides maximum comfort and an open concept that greatly reduces ambient temperature dependence and stabilization time.
Comes equipped with TT-pIR Mini-Suite software for monitoring, training and follow-up.
Note: A ProComp encoder is additionally required to work with the pIR HEG sensor.

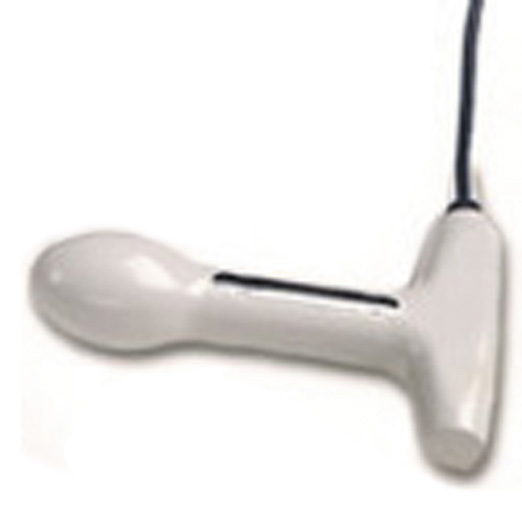

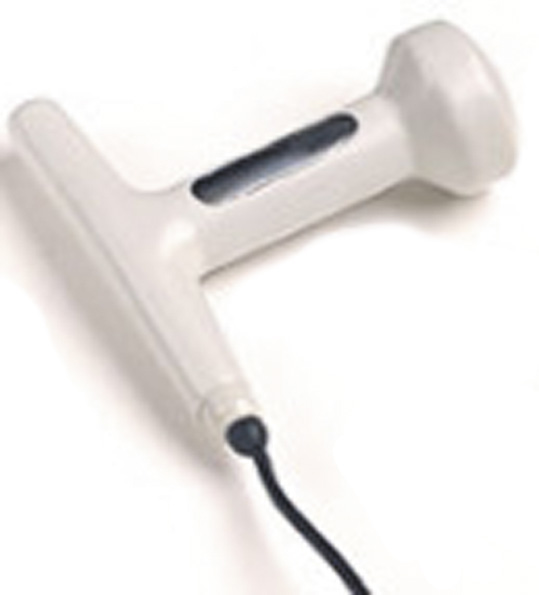

For use with the ProComp systems. The sensor is connected to a myo-scan sensor and can be used with the familiar EMG screens in BioGraph Infiniti. The pelvic muscles, for example, are trained.

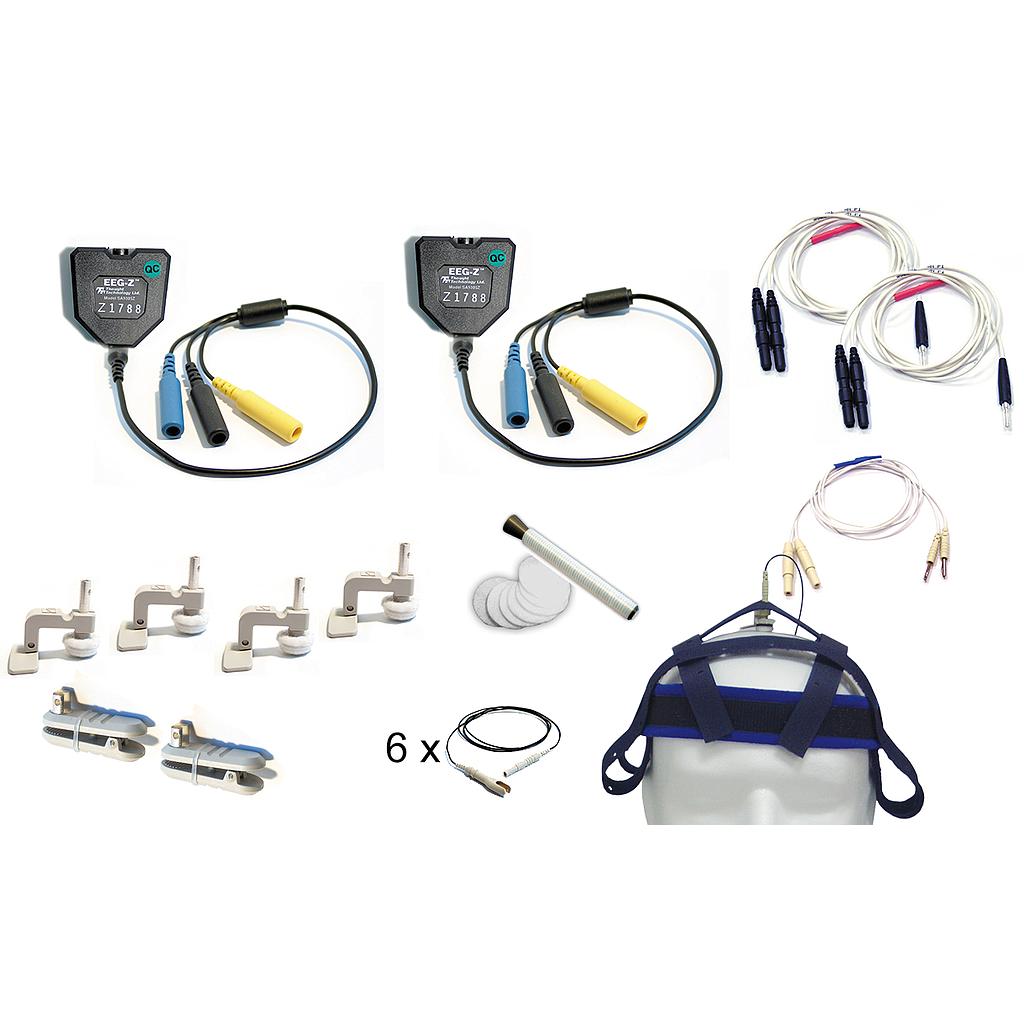

This is a complete lead set for 1 and 2 channel EEG leads with BioGraph Infiniti, suitable for all ProComp encoders. It includes: 2x EEG-Z sensors with integrated impedance check mode, 2x PP-to-DIN connection cable, 2x ear electrodes, 4x sintered bridge electrodes, 6x EEG-DIN connection cables (50cm long), 2x Y-cable, 1x X-cable (for linked ear connections), 0-rings with guide rod for changing the disposable cotton pads, 1 package of electrode covers (consumables), 1x special Velcro cover for elegant electrode placement for any head size

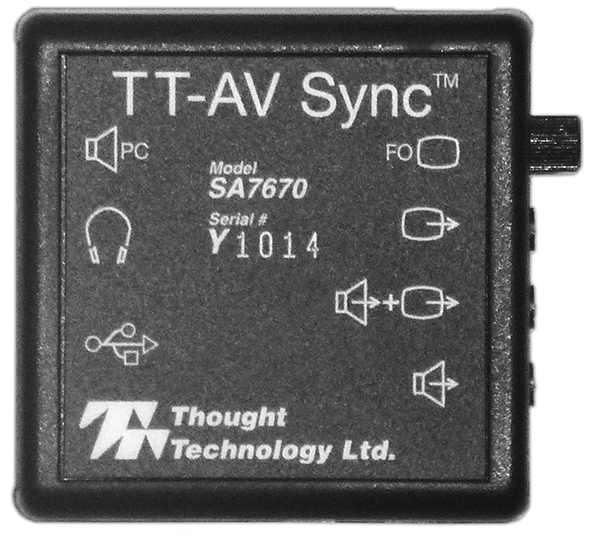

The TT-AV-SYNC sensor ensures absolutely time-precise acquisition of start and end signals for SCP training as well as for reaction time measurements. By means of a fiber-optic connection attached to the monitor, it records with millisecond accuracy when the respective stimulus is set and when the screen is actually changed. Inaccuracies due to latencies, which are unfortunately very common under Windows, are thus completely eliminated.

Pressure sensor ("Push button") for connection to ProComp Infiniti, ProComp5 and ProComp2. Used for example for reaction time suite and SCP suite.
Can be used to:
- skip or end steps during a session
- set time markers
- to react to stimuli
The push button is easy to use and fits comfortably in your hand due to the smooth push switch and non-slip foam cover.
(diameter: 3cm; length: 10,5cm; length cable: 1,5m)

EEG sensor like EEG-Z sensor, without impedance check

This pre-amplified EMG MyoScan Z sensor has an impedance plug (can be started from BioGraph Infiniti from V5). This enables fast, simple and reliable impedance checks without cable misconnections. For the best possible contact, the sensor continuously measures the skin conductance value and skin contact.

Surface electro-myography sensor for measuring raw SEMG on channels A-B of the ProComp Infiniti. The sensor is compatible with the triple electrodes (triodes) or with the interposable extender cables required for more distant electrode placements (e.g. in the face with small electrodes).

preamplified electro-cardiogramm (ECG) sensor which directly measures the elecric heart activity. Incudes ECG wristbands which allow to measure IBI (inter-beat interval) from ECG at the wrists, using a complex artefact removal algorithm in the process (offline). Requires additional ECG extender cable for electrode placement (plus the single use electrodes themselves)

Sensor marking - set with two clips each in 10 different colors and 3 documentation cards

Sensor cable - EXTRA SHORT 30 cm
EXTRA SHORT cable for sensor connection

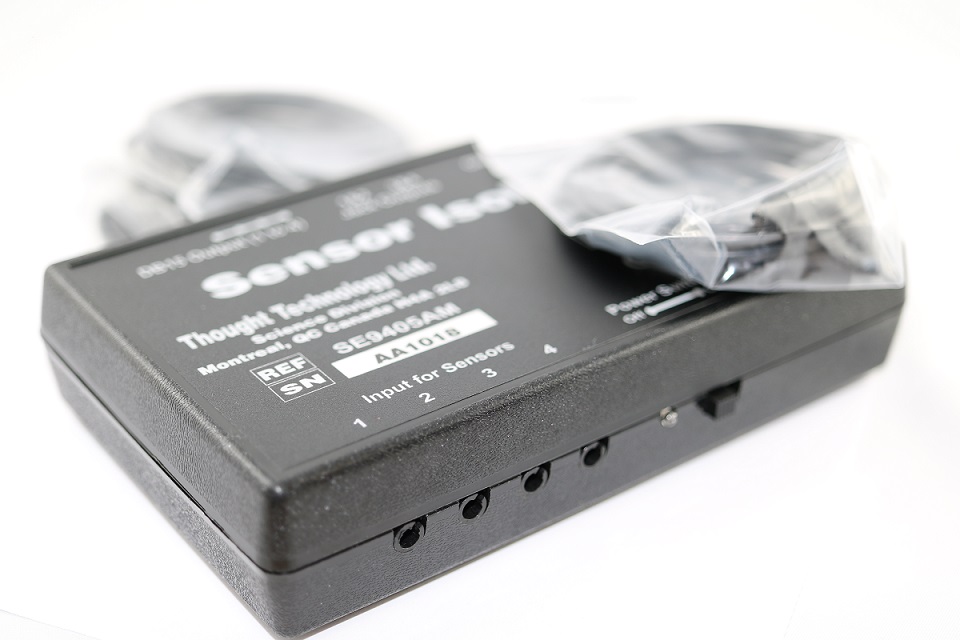

Interface BNC Cable für Sensor Isolator

Pigtail Interface Cable für Sensor Isolator

Sync cable to connect 2 Infiniti systems via USB

Voltage Isolator: Enables integration of third-party sensors with Infinit encoders and BioGraph Infiniti software. The sensors must provide a signal within +/- 2000 mV (partial ranges are sufficient). This signal is then transferred from the encoder to the BioGraph Infiniti software for further processing with the wide range of on-screen instruments and calculation options. This is an extremely useful accessory, especially for research institutions, for integrating additional signals and sensors.

The Voltage Isolator 4 allows synchronous recording of measurement data that is not recorded by one of Thought Technology's sensors. Examples could be the intensity of audio signals (e.g. gastrointestinal sounds). With the Voltage Isolator 4, Thought Technology’s systems to be safely interfaced with analog outputs of line-powered systems, such as computers with DAC cards, isokinetic dynamometers (such as Biodex System), or force platforms.
